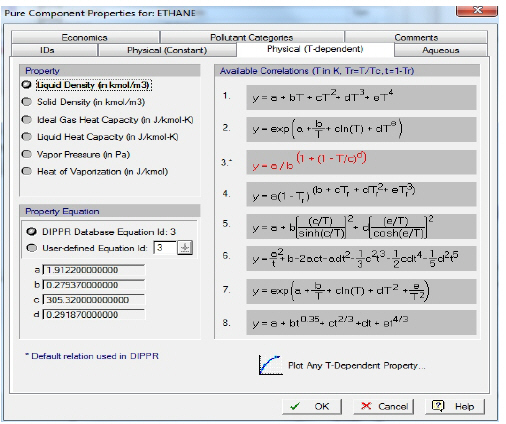

This tab is part of the DIPPR Pure Component Properties Dialog which is shown in the following cases:
● when you display the properties of a registered pure component in the Pure Component Registration Dialog, which is copied from the ‘DIPPR’ databank, or
● when you display the properties of a pure component in the ‘DIPPR’ databank from the Pure Components Databank Dialog.
Each property appearing in this interface is defined (for each component) by one of the 8 equations displayed on the right side of the tab. Alternatively the user may specify the constants and also choose a different correlation depending on what is available in the ‘Equation Id’ drop-down list box for the selected property.
The critical temperature can be specified from the Pure Component Properties Dialog: Physical (Constant) Tab. In addition you may plot any temperature dependent property by clicking on the Plot Any T-Dependent Property button and selecting the temperature range and increment on the dialog that appears (see T-Dependent Property Graph Dialog).
See also Pure Component Properties Dialog: Physical (T-Dependent) tab.
