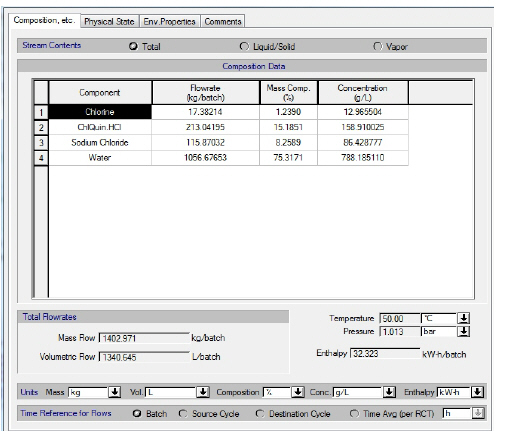

This tab is part of the Bulk Intermediate/Output Stream Dialog. This dialog appears if you right-click on an intermediate or output stream and select Simulation Data from the context menu or if you double-click on an intermediate or output stream on the flowsheet.
This dialog displays the current state of the stream (the temperature, pressure, activity, total enthalpy, total flow for the whole stream, and the mass flow, weight percent, concentration and extracellular fraction for each ingredient currently present in the stream).
Notice that none of the displayed property values of the stream are editable (they are calculated by the program).
You may only affect the units of measurement used to display the above values and the time reference for flows (if the plant operation mode is batch).
