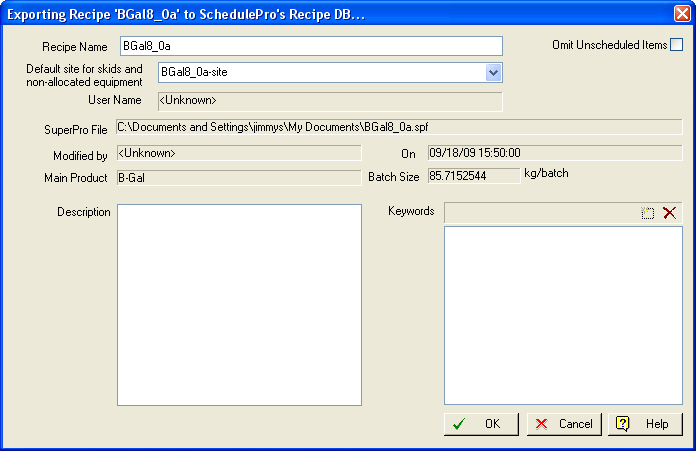

This dialog appears if you select File } Export to SchedulePro® Recipe DB from the main menu of the application. It provides the user with the following options:
● Recipe Name
The exported recipe name. By default the SuperPro file name is used.
● Default site for skids and non-allocated equipment
The site where skids and non-allocated equipment are to be exported by default.
● Omit Unscheduled Items
Items which are not scheduled in the recipe may be omitted from exporting.
● Description
The user may give a description to the exported recipe.
● Keywords
The user may use keywords in the exported recipe, to help searching through database.
The interface also displays the following information which are taken by default and can not be edited:
● User Name
The user name of the user accessing the database. This can be defined in the Application Settings Dialog: Miscellaneous tab in the Database Access section.
● SuperPro File
The full path were the SuperPro file resides.
● Modified by and On
The name of the user who modified the recipe and the date on which the change was made.
● Main Product
The defined main product of the recipe, defined in the Stream Classification Dialog.
● Batch Size
The batch size of the recipe.
