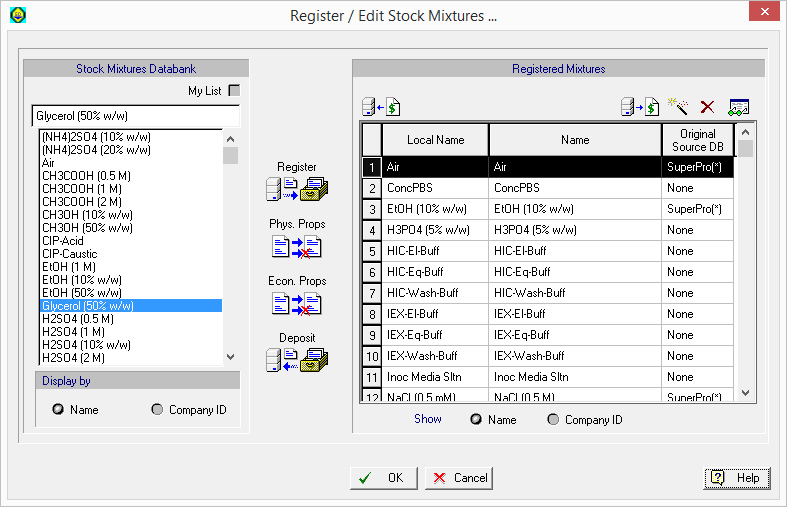

Stock Mixture Registration Dialog

This dialog appears when you select Tasks } Stock Mixtures } Register, Edit/View Properties... (Ctrl+Shift+2) from the main menu of the application.

Using this dialog you can:

      Introduce (register) a new stock mixture into this process file by importing it from the stock mixture databank.

      You can introduce (register) an altogether new stock mixture (which does not exist in the stock mixture databank)

      You can edit the properties of a registered stock mixture.

      You can deposit (upload) a stock mixture already registered in your process file to the ‘SuperPro (User)’ database so that it can be used later by you or any other member of your design team.

      You can copy over Physical Properties or Economic Properties from stock mixtures residing in the mixture databank to the currently registered stock mixtures.

      Update economic property data of a specific stock mixture to or from the ‘SuperPro (User)’ database.

For more details on each task, see Stock Mixture Registration Dialog.
